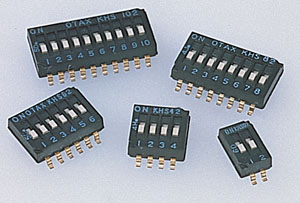

KH Series HALF PITCH DIP SWITCHES

HALF PITCH DIP SWITCHES RoHS Compliant Product

It can be jointed on the PCB surface and is use of engineering plastic to upgrade heat resistance performance.

[Rating] DC24V 25mA max DC50V 100mA max
[Contact resistance ] DC2V 1mA 100mΩ MAX
[nsulation Voltage ] AC300V 1 minute
[ Insulation resistance ] DC100V 1,000MΩ min
[ Humidity Resistance ] For 240 hours at the temperature of 38~42 centigrade and the relative humidity of 90%~95%
then placed in the moist room for 30 minute after dried ,the insulationn resistance was 10MΩ min.
[Salt spray resistance ] To withstand the atmosphere 5% saltwater at temperature of 32~38 centigrad then wiped salt soak,for six-hour air-dry at the temperature of 57 centigrade , without electrify and rusting.
[ Electrical Life ] 1,000 operations at rated voltage and current.
[ Mechanical Life]2,000 cycles at no load.
[ Heat resistance ] For 250 hours at the temperature of 97~103,it will not bring Unusual electrical properties,insulation material deformation and crackle, and other anomalies.
[ Cold resistance ] For 250 hours at the temperature of the(-48)-(-42) ,it will not bring unusual electrical properties,insulation material deformation and crackle ,other anomalies.
[ Shock resistance ] it shall withstand acceleration of 50G for 10-12 m sec to be
applied 3 times in each direction of 3 mutually perpendicular axis.
[ Gas test]
1.For 48 hours at the temperature of 40 centigrade,the SO2 thickness of 0.7-1.3 ppm,it will not abnormality."
2.For 48 hours at the temperature of 40 centigrade,the H2S thickness of 0.7-1.3 ppm,it will not abnormality.
[ operating temperature rang ] -30--+85
